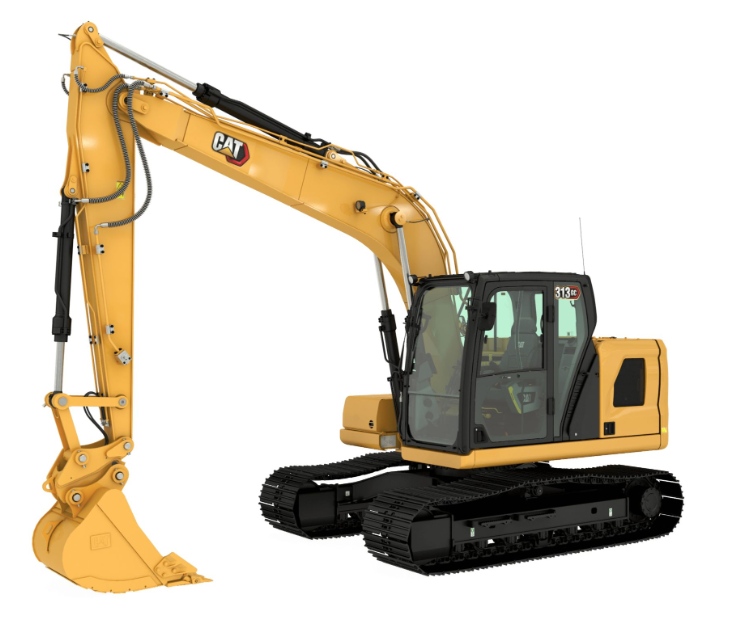

If you need reliability, durability, high productivity, and low cost, the Cat 313GC is made for you. This excavator is designed, built, and uniquely supported to put you on the fast track to prosperity.
| Model | 313GC |
| Net Power | 70.6 kW |
| Engine Model | Cat C3.6 |
| Engine Power - ISO 14396 | 74.4 kW |
| Engine Power - ISO 14396 (DIN) | 101 hp (metric) |
| Net Power - ISO 9249 (DIN) | 96 hp (metric) |
| Bore | 98 mm |
| Stroke | 120 mm |
| Displacement | 3.6 L |
| Operating Weight | 12400 kg |
| Max Digging Depth | 5570 mm |
| Boom | Reach 4.65 m (15'3") |
| Stick | Reach 2.5 m (8'2") |
| Bucket | GD 0.60 m³ (0.78 yd³) |
| Maximum Reach at Ground Level | 8210 mm |
| Maximum Cutting Height | 8530 mm |
| Maximum Loading Height | 6070 mm |
| Minimum Loading Height | 1980 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 5370 mm |
| Maximum Vertical Wall Digging Depth | 5040 mm |
| Bucket Digging Force - ISO | 95.7 kN |
| Stick Digging Force - ISO | 68.2 kN |
