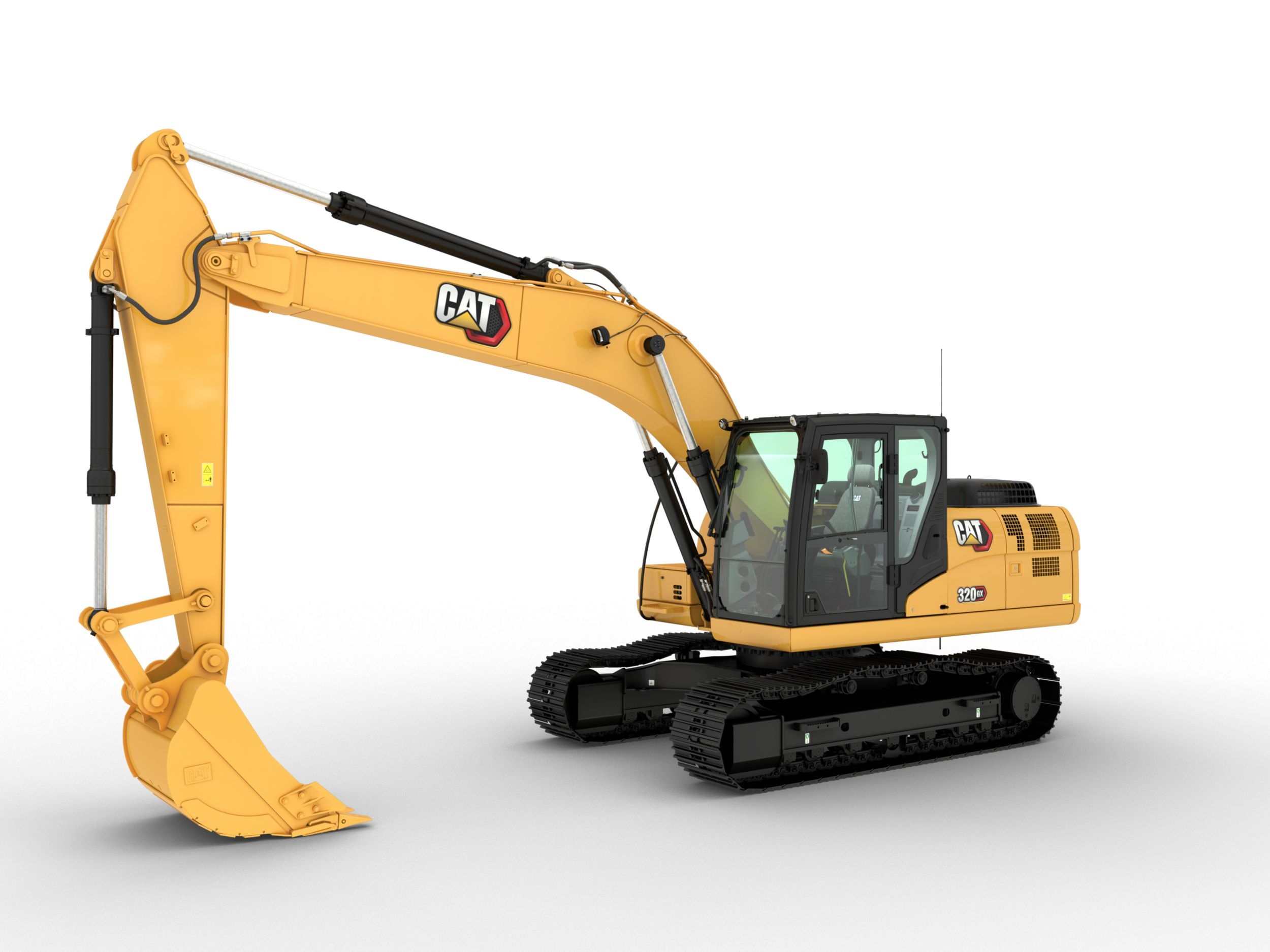

The Cat 320GX combines proven Cat reliability with simplified features, easy maintenance, and fuel efficiency. Designed for utility and general construction, it helps owners achieve a faster return on investment.
| Model | 320GX |
| Net Power | 103.6 kW |
| Engine Model | Cat® C4.4 |
| Engine Power - ISO 14396 | 108 kW |
| Engine Power - ISO 14396 (DIN) | 147 hp (metric) |
| Net Power - ISO 9249 (DIN) | 141 hp (metric) |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 L |
| Operating Weight | 20400 kg |
| Max Digging Depth | 6430 mm |
| Boom | Reach 5.7 m (18'8") |
| Stick | Reach 2.7 m (8'10") |
| Bucket | GD 0.93 m³ (1.22 yd³) |
| Maximum Reach at Ground Level | 9580 mm |
| Maximum Cutting Height | 9290 mm |
| Maximum Loading Height | 6450 mm |
| Minimum Loading Height | 2460 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 6250 mm |
| Maximum Vertical Wall Digging Depth | 5510 mm |
| Bucket Digging Force - ISO | 136 kN |
| Stick Digging Force - ISO | 106 kN |
