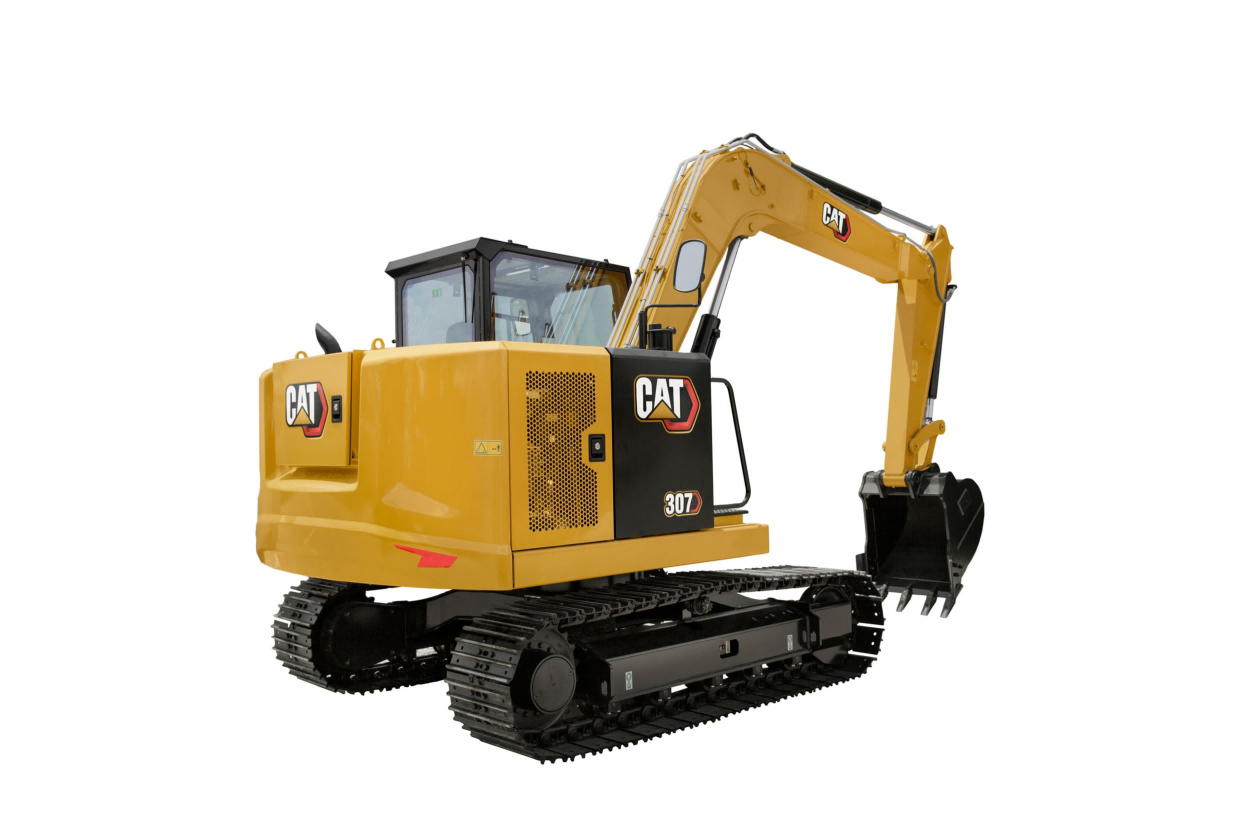

The Cat 307 mini excavator features a standard tail and fixed side-mounted boom design for high performance with low fuel consumption. Durable, reliable construction helps you balance high productivity and low operating costs in a wide range of applications.
| Model | CAT307 |
| Net Power | 36 kW |
| Engine Model | Cat C2.4 Turbo |
| Cylinder bore | 87 mm |
| Displacement | 2.4 L |
| Operating Weight | 7435 kg |
| Boom retraction position | 1713 mm |
| Vertical walls | 3490 mm |
| Maximum reach - ground | 6159 mm |
| Overall track length | 2760 mm |
| Dig deep | 4067 mm |
| Maximum digging height | 7240 mm |
| Maximum blade depth | 350 mm |
| Cab height | 2540 mm |
| Tail turning radius | 1750 mm |
| Total transport width | 2200 mm |
| Maximum blade height | 390 mm |
| Maximum reach distance | 6297 mm |
| Total shipment length | 6076 mm |
| Slewing bearing height | 774 mm |
| Track shoe width | 450 mm |
| Maximum unloading clearance | 5195 mm |
| Boom shipping height | 2634 mm |
