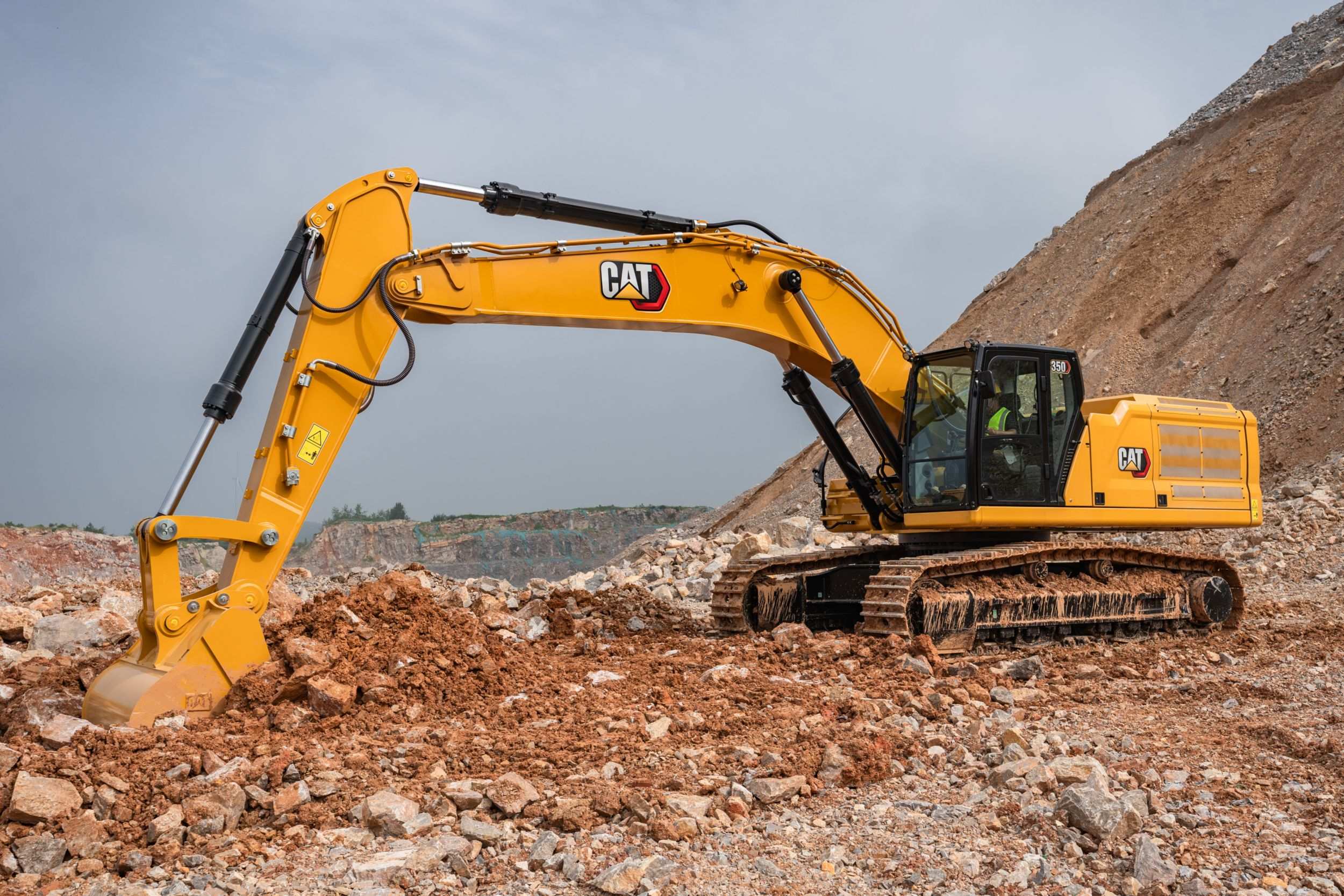

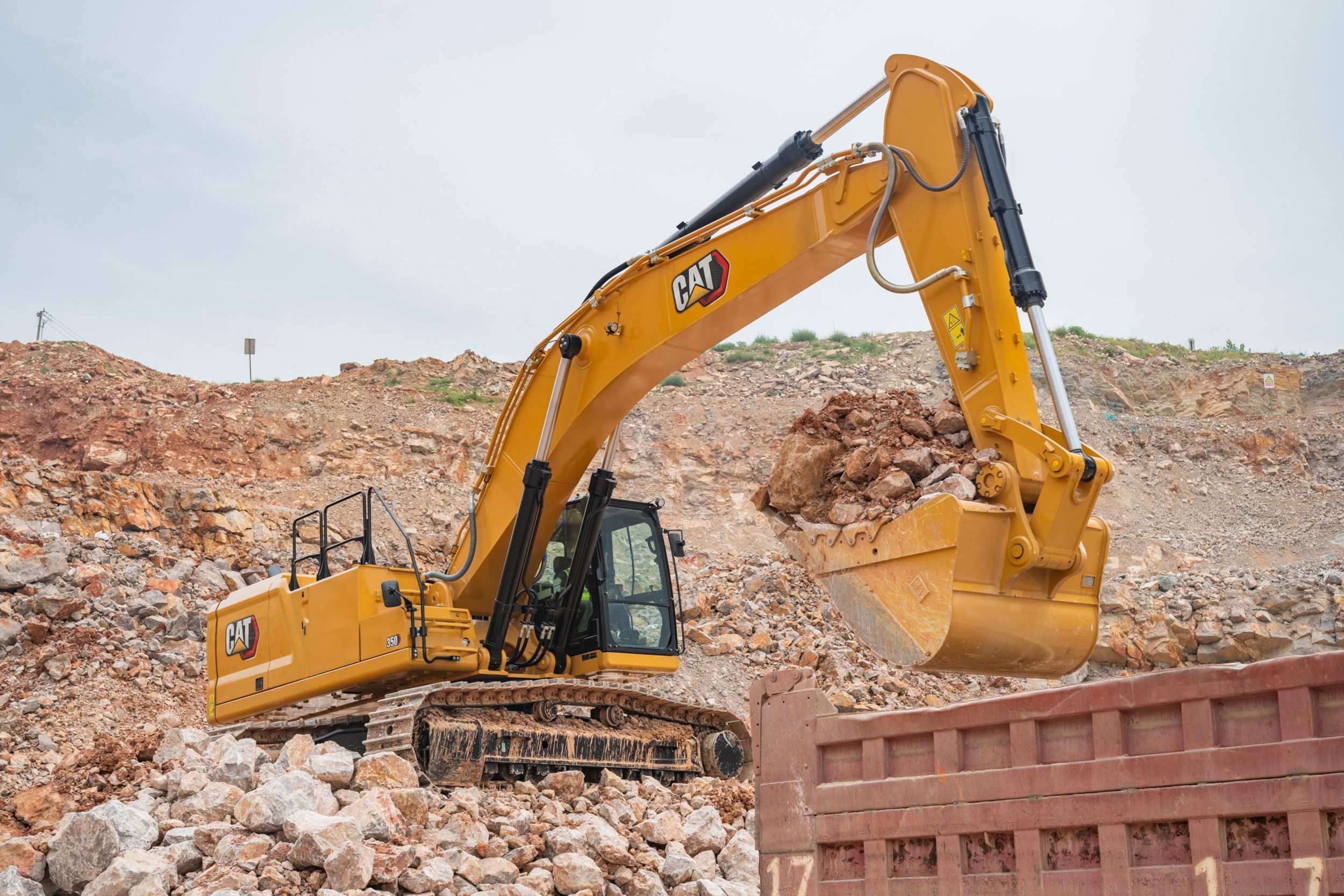

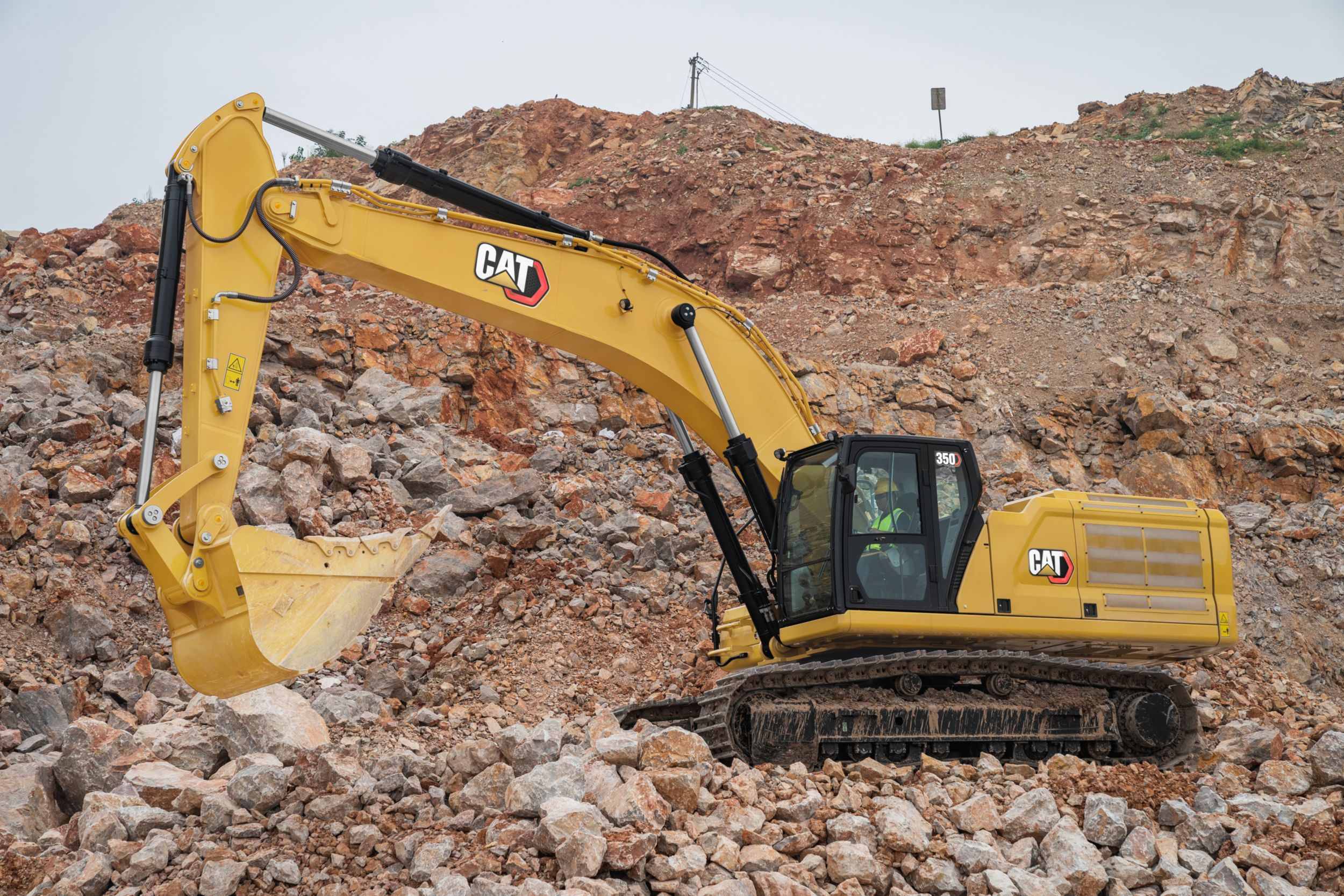

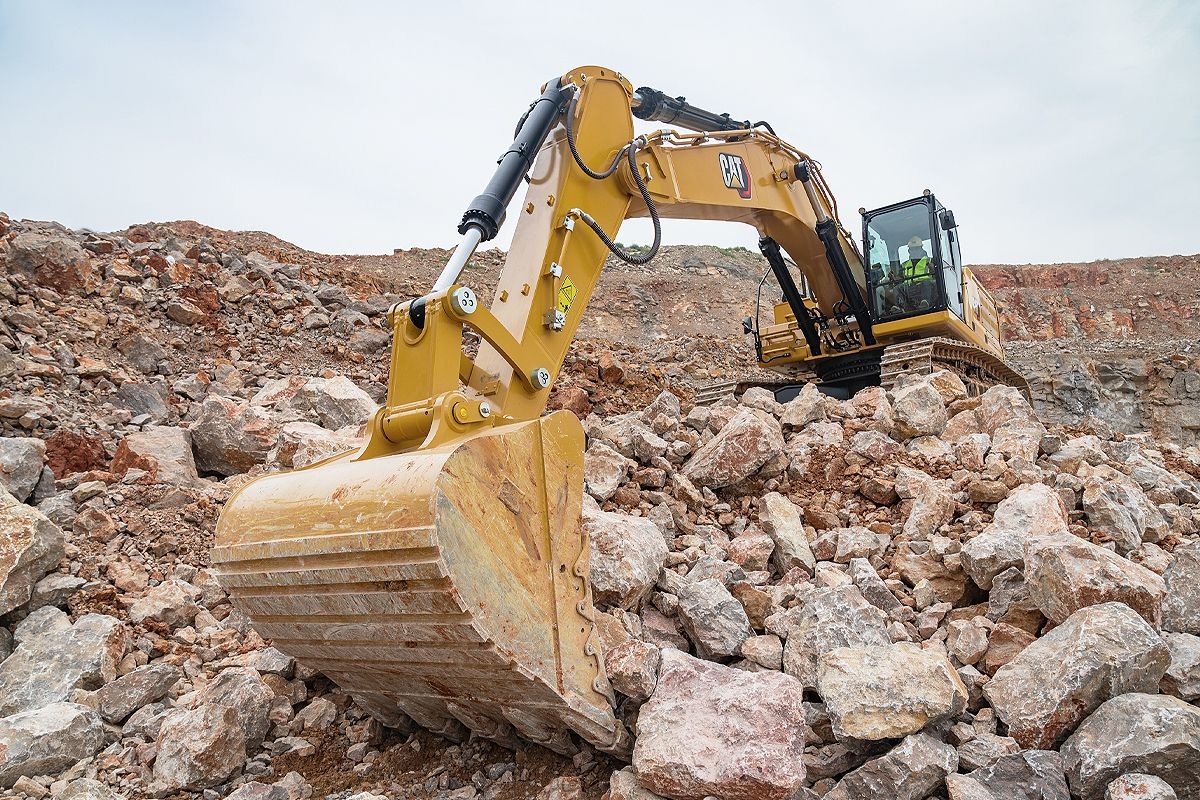

The Cat 350 is known for its premier productivity, low owning and operating costs, and easy-to-use Cat technology. With a bucket capacity of up to 3.2 m3 (4.2 yd3) and outstanding digging force and swing torque, the 350 can move tons of material for top production.
The cab features large windows at the front, sides, and rear, giving excellent visibility in all directions from the operator's seat. Narrow front cab pillars allow a wider field of view to the front. The 350 will help you get tons of work done on grade and on time.
| Model | 350 |
| Net Power | 309 kW |
| Engine Model | C9.3 B |
| Engine Power - ISO 14396 | 310 kW |
| Net Power - ISO 9249 (DIN) | 420 hp |
| Bore | 115 mm |
| Stroke | 149 mm |
| Displacement | 9.3 L |
| Operating Weight | 47600 kg |
| Max Digging Depth | 7690 mm |
| Boom | Reach 6.9 m (22’8”) |
| Stick | Reach 3.35 m (11’) |
| Bucket | SD 2.70 m³ (3.60 yd³) |
| Maximum Reach at Ground Level | 11760 mm |
| Maximum Cutting Height | 10700 mm |
| Maximum Loading Height | 7380 mm |
| Minimum Loading Height | 2710 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 7550 mm |
| Maximum Vertical Wall Digging Depth | 5630 mm |
| Bucket Digging Force - ISO | 266 kN |
| Stick Digging Force - ISO | 200 kN |
