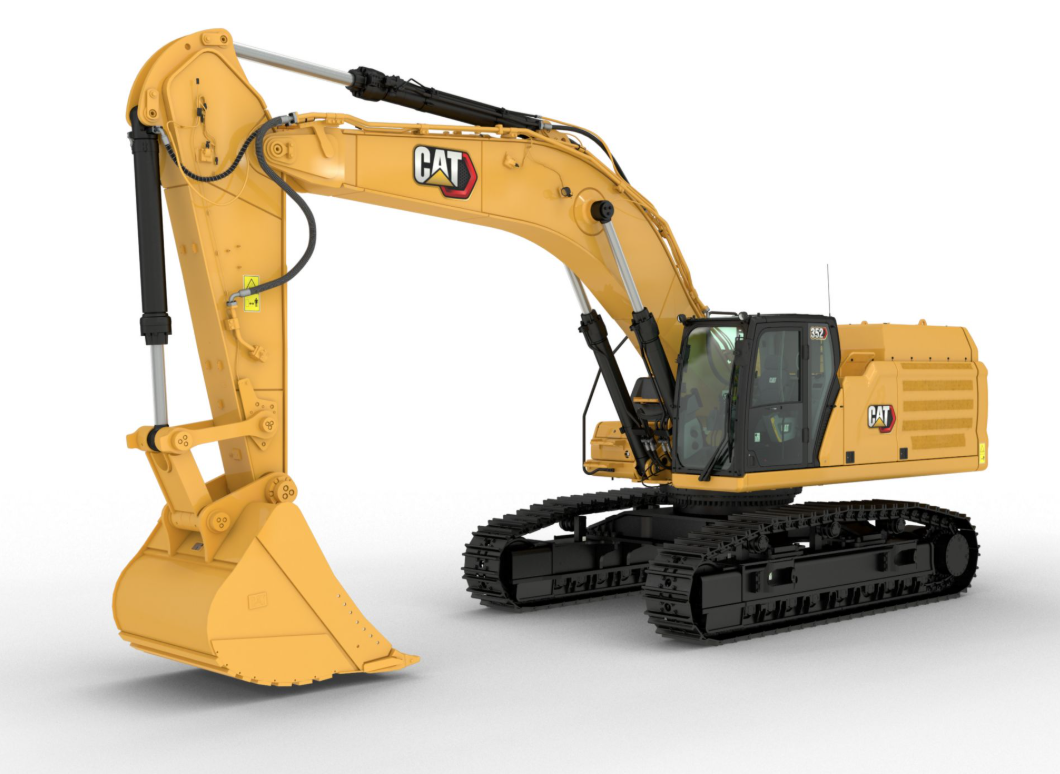

The Cat 352 gives you the power and durability to tackle big jobs. It offers premium performance and simple-to-use technologies like Cat Grade with 2D, Grade Assist, and Payload all standard equipment from the factory to help boost your operator efficiencies.
The 9.8 mt (21,605 lb) counterweight enables the excavator to be more stable and productive with large work tools. Extended and synchronized maintenance intervals and low fuel consumption help you cut costs without sacrificing production.
| Model | 352 |
| Net Power | 302 kW |
| Engine Model | Cat C13 |
| Engine Power - ISO 14396 | 303 kW |
| Net Power - ISO 9249 (DIN) | 412 hp (metric) |
| Bore | 130 mm |
| Stroke | 157 mm |
| Displacement | 12.5 L |
| Operating Weight | 52500 kg |
| Max Digging Depth | 7140 mm |
| Boom | Mass Boom 6.55 m (21'6") |
| Stick | Mass Stick M3 m (9'10") |
| Bucket | SD 3.5 m³ (4.58 yd³) |
| Maximum Reach at Ground Level | 11230 mm |
| Maximum Cutting Height | 10450 mm |
| Maximum Loading Height | 6910 mm |
| Minimum Loading Height | 2740 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 6990 mm |
| Maximum Vertical Wall Digging Depth | 4520 mm |
| Bucket Digging Force - ISO | 292 kN |
| Stick Digging Force - ISO | 211 kN |
