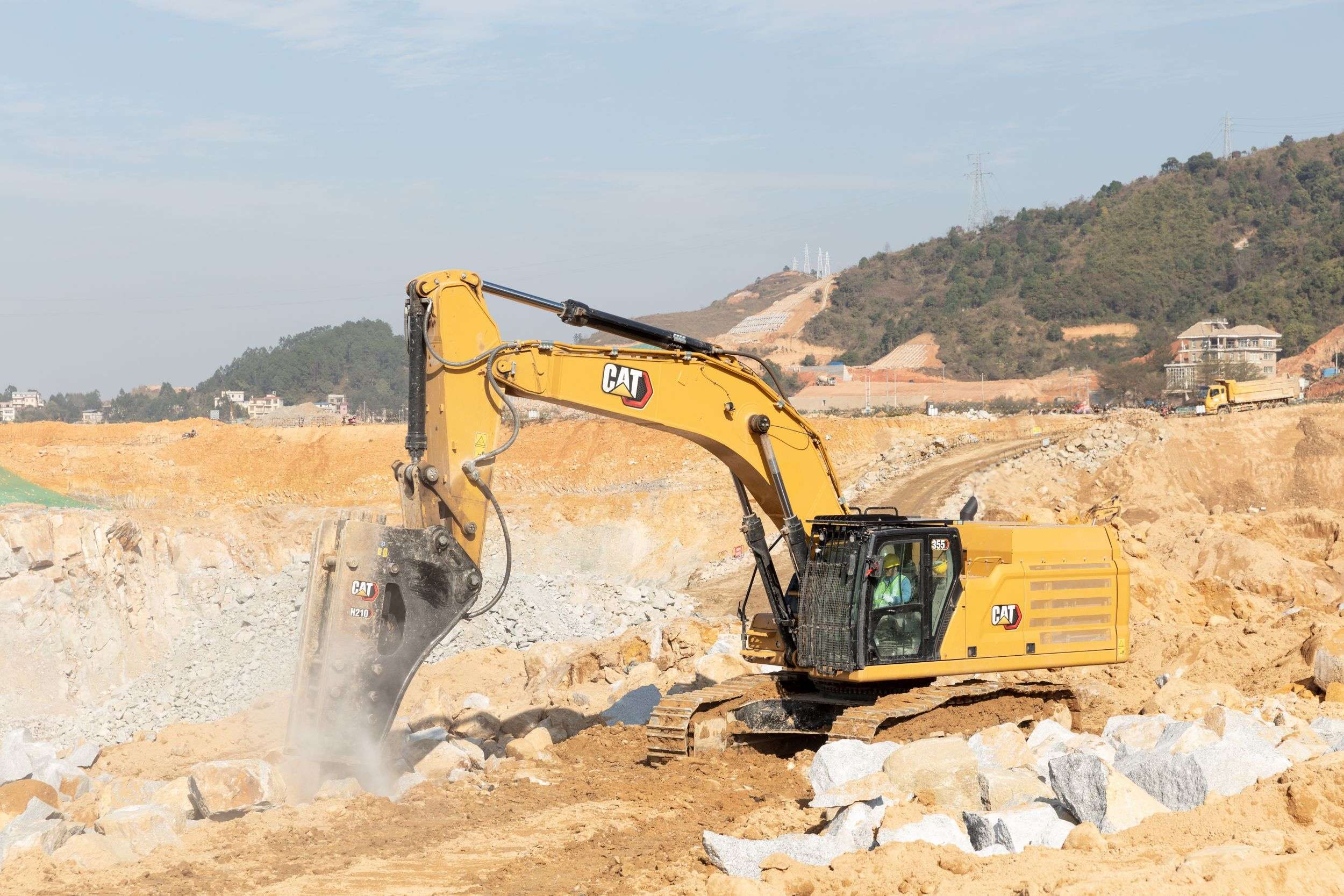

The Cat 355 Excavator is an excellent product for rock crushing, truck loading, quarrying, aggregate and mining applications, making it the top choice for heavy-duty jobs in its class.
Equipped with C13B engine features a proven and reliable aftertreatment system that complies with China's off-road China IV emission standards with virtually no downtime to help you achieve rapid success. Equipped with a highly durable front structure, heavy-duty counterweights, and enhanced windshield protection, this machine can withstand large tooling and give you even more benefits.
| Model | 355 |
| Net Power | 330 kW |
| Engine Model | Cat C13B |
| Engine Power - ISO 14396 | 332 kW |
| Net Power - ISO 9249 (DIN) | 451 hp (metric) |
| Bore | 130 mm |
| Stroke | 157 mm |
| Displacement | 12.5 L |
| Operating Weight | 51500 kg |
| Max Digging Depth | 6770 mm |
| Boom | Reinforced 6.55 m (21'6") |
| Stick | Reinforced M2.5 m (8'2") |
| Bucket | SD 3.21 m³ (4.20 yd³) |
| Maximum Reach at Ground Level | 10770 mm |
| Maximum Cutting Height | 10090 mm |
| Maximum Loading Height | 6580 mm |
| Minimum Loading Height | 3110 mm |
| Maximum Depth Cut for 2440 mm (8 ft) Level Bottom | 6600 mm |
| Maximum Vertical Wall Digging Depth | 4110 mm |
| Bucket Digging Force - ISO | 293 kN |
| Stick Digging Force - ISO | 240 kN |
